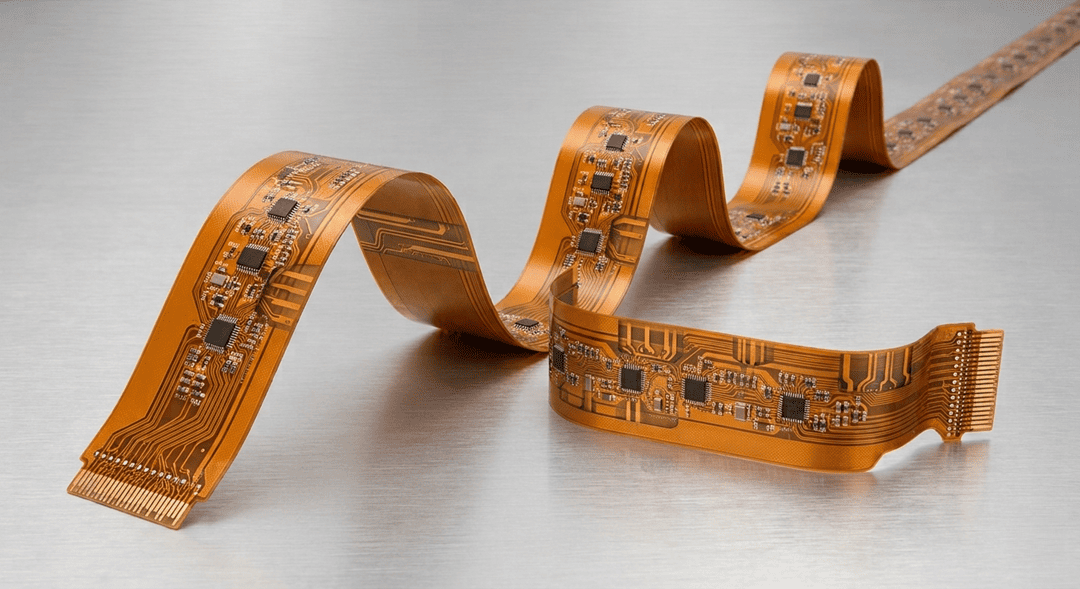

2 Layer Long Flex PCB Manufacturer
|
|
|
|
A 2 layer long flex PCB is a flexible printed circuit designed in extended lengths for applications requiring electrical connections across greater distances. It consists of two conductive copper layers separated by a flexible dielectric material, typically polyimide. Vias provide electrical connections between the layers, enabling greater routing flexibility and circuit complexity than a single-layer flex PCB. The long, flexible construction supports signal and power transmission across extended or space-constrained assemblies. It can also reduce the need for bulky wire harnesses, multiple connectors, and complex cable routing. For applications with specific dimensional, bending, routing, or installation requirements, a 2 layer custom long flex PCB provides the flexibility to accommodate unique design configurations. At Mega Plus PCB, we manufacture 2 layer long flexible circuit boards in custom lengths and configurations to meet specific electrical, mechanical, and environmental requirements. We support specialized material selections and production volumes ranging from prototypes to full-scale manufacturing.
Request a Quote
|
|
|
Technical Capabilities & Manufacturing Specifications
Mega Plus PCB combines specialized flex PCB manufacturing capabilities with precise process control to produce 2 Layer Long Flex PCBs for demanding design and application requirements. Here are our key technical capabilities and specifications:.
| Capability |
Specification |
| Layer Count |
2 Conductive Layers |
| Base Material |
Polyimide (PI)
|
| Copper Weight |
0.5 oz, 1 oz, Custom Options |
| Maximum Length |
Custom Long-Length Designs |
| Minimum Trace/Space |
Down to 2 mil (0.05 mm) |
| Minimum Hole Size |
Custom Capabilities |
| Coverlay |
Polyimide Coverlay |
| Stiffener Options |
Polyimide, FR4, Stainless Steel |
| Surface Finishes |
ENIG, OSP, Immersion Tin, Hard Gold |
| Bend Radius |
Optimized for Static & Dynamic Flex Applications |
| Electrical Testing |
100% Electrical Testing Available |
| Prototype & Production |
Low to High Volume Manufacturing |
|
|
|
Types of 2 Layer Long Flex PCBs
We offer the following types of 2 layer long flex PCB constructions depending on the application's mechanical, electrical, and manufacturing requirements.
1
Adhesive-Bonded 2 Layer Long Flex PCBs
Adhesive-bonded constructions use an adhesive layer between the copper and polyimide substrate, making them a practical choice for many production applications.
2
Adhesiveless 2 Layer Long Flex PCBs
Adhesiveless designs eliminate the bonding layer, resulting in a thinner circuit with improved dimensional stability, thermal performance, and flex durability for demanding applications.
3
Static 2 Layer Long Flex PCBs
A static 2 layer flexible PCB is bent during installation and remains in a fixed position throughout its service life. These circuits are commonly used where flexibility is required for assembly, but repeated movement is not expected during operation.
4
Dynamic 2 Layer Long Flex PCBs
Dynamic designs are engineered to withstand repeated bending and movement throughout their operational life. They are often used in robotics, motion-control systems, sliding assemblies, and other applications where the circuit experiences continuous flexing.
5
Controlled-Impedance 2 Layer Long Flex PCBs
This type of 2 layer long flexible circuit board is manufactured with controlled trace geometry and dielectric characteristics to support signal integrity across extended circuit lengths. It is commonly used in high-speed communication, networking, and data transmission applications.
|
|
 |
Industries We Support with 2 Layer Long Flexible Circuit Board
Mega Plus PCB manufactures 2 layer long flexible circuit boards for applications across industries that require reliable electrical connections, extended circuit lengths, and flexible installation. Industries we support include:
- Aerospace and Defense: Weight reduction and reliability remain major priorities in aerospace systems. A 2 layer long flexible circuit board can support avionics, satellite electronics, communication systems, and military equipment where dependable performance is critical.
- Medical: Medical equipment often contains distributed electronic components that require compact interconnections. Our 2 layer flexible PCBs are used in diagnostic equipment, imaging systems, patient monitoring devices, and portable healthcare electronics.
- Industrial Automation: Robotics and automated machinery frequently require circuits that accommodate movement and compact mechanical layouts. Common applications of our 2 layer long flex PCB include motion control systems, industrial sensors, and factory automation equipment.
- Automotive & EV: Modern vehicles integrate increasingly complex electronic systems within compact spaces. Our 2 layer long flex PCBs support applications such ascamera systems, ADAS modules, battery management systems, infotainment equipment, and distributed sensor networks.
- Telecommunications: Networking and communication equipment often require signal transmission between physically separated modules. Our 2 layer long flex PCBs find applications in communication modules, antenna assemblies, networking equipment, base station electronics, and other interconnected telecom systems.
- Consumer Electronics: Compact electronic products often require flexible interconnections between electronic modules positioned in different areas of an assembly. Our 2 layer long flexible PCBs support applications such as printers, scanners, display assemblies, cameras, wearable devices, and other space-constrained consumer electronics.
- LED Lighting: Long-format LED strips, architectural lighting systems, and specialty lighting products frequently use our flexible circuits to simplify installation and support extended layouts.
|
|
Why Choose Mega Plus PCB for 2 Layer Long Flex PCBs?
Mega Plus PCB supports customers throughout the design and manufacturing process, helping engineers make informed decisions before production begins. Our team works closely with OEMs, product designers, and manufacturing engineers to help ensure each 2 layer custom long flex PCB aligns with the intended application and production goals.
- Engineering-Focused Manufacturing: Our team provides DFM analysis, bend radius guidance, and mechanical design support to help ensure each 2 layer flexible PCB is suitable for its intended application and manufacturing process.
- Long Flex PCB Expertise: We support custom-length flexible circuits with precision routing, fine-line fabrication, and construction options suited to static and dynamic flex applications.
- Material & Construction Expertise: We help customers evaluate polyimide materials, copper types, coverlay constructions, stiffeners, and surface finishes based on electrical, mechanical, and environmental requirements.
- Quality-Focused Production: Our manufacturing processes include electrical testing and comprehensive inspections to verify circuit quality, dimensional accuracy, and electrical performance.
- Prototype to Production: We support projects from prototype quantities through low- and high-volume production, providing a consistent manufacturing path as product requirements change.
- Responsive USA Customer Support: Our project management team provides direct support throughout the manufacturing process, helping customers address technical questions and keep projects moving.
|
|
|
|
Quality Assurance & Certifications
Every 2 layer long flex PCB is manufactured under controlled quality processes to help ensure consistent electrical performance, mechanical reliability, and long-term durability.
Certifications:
- AS9100D
- ISO 9001
- UL
- RoHS
- IPC Standards
- ITAR (where applicable)
|
|
Ready to Bring Your 2 Layer Long Flexible PCB Design into Production?
Share your design files, drawings, or project requirements with our team for a detailed manufacturing review and quotation. Our engineers can assist with material selection, stackup considerations, and more based on your application requirements. Contact us today to get started.
Request a Quotes
|
|
|
FAQs
What design factors should be considered for a long 2-layer flexible PCB?
Important factors include overall circuit length, trace width and spacing, copper weight, bend locations, bend radius, connector areas, voltage drop, signal requirements, and operating environment. These details help determine the appropriate materials and construction.
Can a 2 layer long flex PCB carry both power and signals?
Yes. A 2 layer flexible circuit can route both power and signal conductors. Copper weight, trace width, current requirements, temperature rise, and voltage drop should be evaluated to determine suitable conductor dimensions.
Can components be mounted directly onto a 2 layer long flex PCB?
Yes. Components can be mounted on designated areas of a 2-layer flexible circuit using appropriate assembly processes. Stiffeners may be added beneath connector or component areas to provide additional mechanical support during assembly and operation.
|
|
|
|
