A Variety of Rigid and Flexible Circuits


MPPI provides flexible and rigid circuits to meet your needs. Please take a few minutes to review our product options.

Flex Circuits

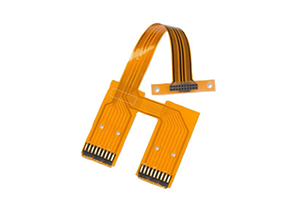

Single-Sided Flex Circuits

Single-sided flexible circuits consist of a single conductor layer on a flexible dielectric film with termination features accessible from one side. Such circuits can be fabricated with or without protective coatings as cover layers or cover coats.

Applications:

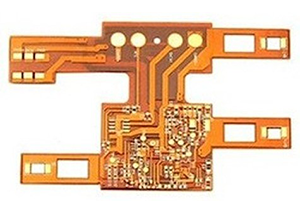

Double-Sided Flex Circuits

Double-sided flex circuits are constructed with two conductor layers, with or without plated through holes. Terminations for such circuits can easily be provided on either side of the circuit. As with single-sided flex, double-sided flex circuits can be fabricated with cover layers.

  • Aerospace
  • Medical
  • Automotive or General Interconnects Used in Electronic Devices
  • Tests and Measurements
  • Consumer Electronics
  • Contract Manufacturers
  • Networking and Communication
  • Industrial
  • Aerospace
  • Medical
  • Automotive or General Interconnects Used in Electronic Devices
  • Tests and Measurements
  • Consumer Electronics
  • Contract Manufacturers
  • Networking and Communication
  • Industrial

Multilayer Flex Circuits

Flex circuits having three or more layers of conductors, which are interconnected by way of plated-through holes, referred to as multilayer flex. Layers may be continually laminated together throughout construction in such cases where maximum flexibility is required, and where flexing or bending occurs they can be manufactured unbound.

Applications:

  • Aerospace
  • Medical
  • Automotive or General Interconnects Used in Electronic Devices
  • Tests and Measurements
  • Consumer Electronics
  • Contract Manufacturers
  • Networking and Communication
  • Industrial


Double Access or Back Bared Flex Circuits

Double access flex, also known as back bared flex, are circuits with a single conductor layer which is processed in a manner that allows access to the conductors from both sides.

Applications:

  • Aerospace
  • Medical
  • Automotive or General Interconnects Used in Electronic Devices
  • Tests and Measurements
  • Consumer Electronics
  • Contract Manufacturers
  • Networking and Communication
  • Industrial

Flex Circuits 1 Flex Circuits 2 Flex Circuits 3

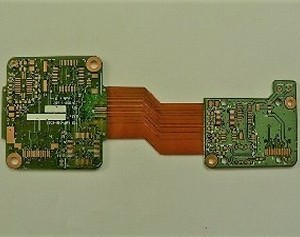

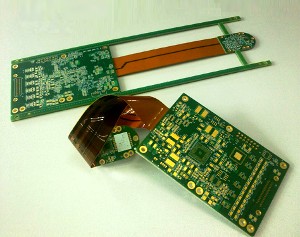

Rigid-Flex Circuit

Rigid-flex circuits are of a hybrid construction consisting of rigid and flexible substrates laminated together into a single package and electrically interconnected by means of plated-through holes. Such flexible circuit types have enjoyed tremendous popularity among military product designers, and in recent years have made gains in the commercial world. Rigid-flex boards are normally multilayer designs, however double-sided (tow metal layer) constructions are possible, and have been used in certain microelectronic applications.

Applications:

  • Aerospace
  • Medical
  • Automotive or General Interconnects Used in Electronic Devices
  • Tests and Measurements
  • Consumer Electronics
  • Contract Manufacturers
  • Networking and Communication
  • Industrial

Rigid Flex 1 Rigid Flex 2 Rigid Flex 3

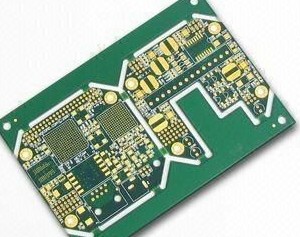

FR4 Rigid

Glass laminates are widely used for subtractive printed circuit board fabrication because they meet a wide variety of processing conditions. Thermally stable copper-clad epoxy-glass laminates offer high mechanical strength and machinability, outstanding electrical characteristics, consistent drilling properties, and V-O fire resistance. Designed for single and double-sided boards, they provide a combination of processing flexibility and finished board performance needed for many SMT applications.

Applications:

  • Aerospace
  • Medical
  • Automotive or General Interconnects Used in Electronic Devices
  • Tests and Measurements
  • Consumer Electronics
  • Contract Manufacturers
  • Networking and Communication
  • Industrial

FR4 Rigid 1 FR-4 Rigid 2 FR-4 Rigid 3

Mass Production Offshore Capability

Mega Plus PCB, Inc. has developed a business relationship with several China and Taiwan based printed circuit board manufacturers that share in our vision and philosophy of complete customer service and satisfaction. At the request of some clients, we have aligned our processes with offshore firms to provide the customer a seamless transition for production requirements related to geographically based supply. Simply contact MPPI, and we will fulfill your offshore PCB production needs. Our services include complete management, from quoting and ordering, to expediting, delivery, and monitoring.
